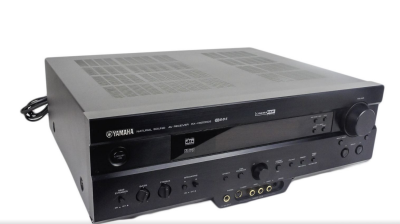

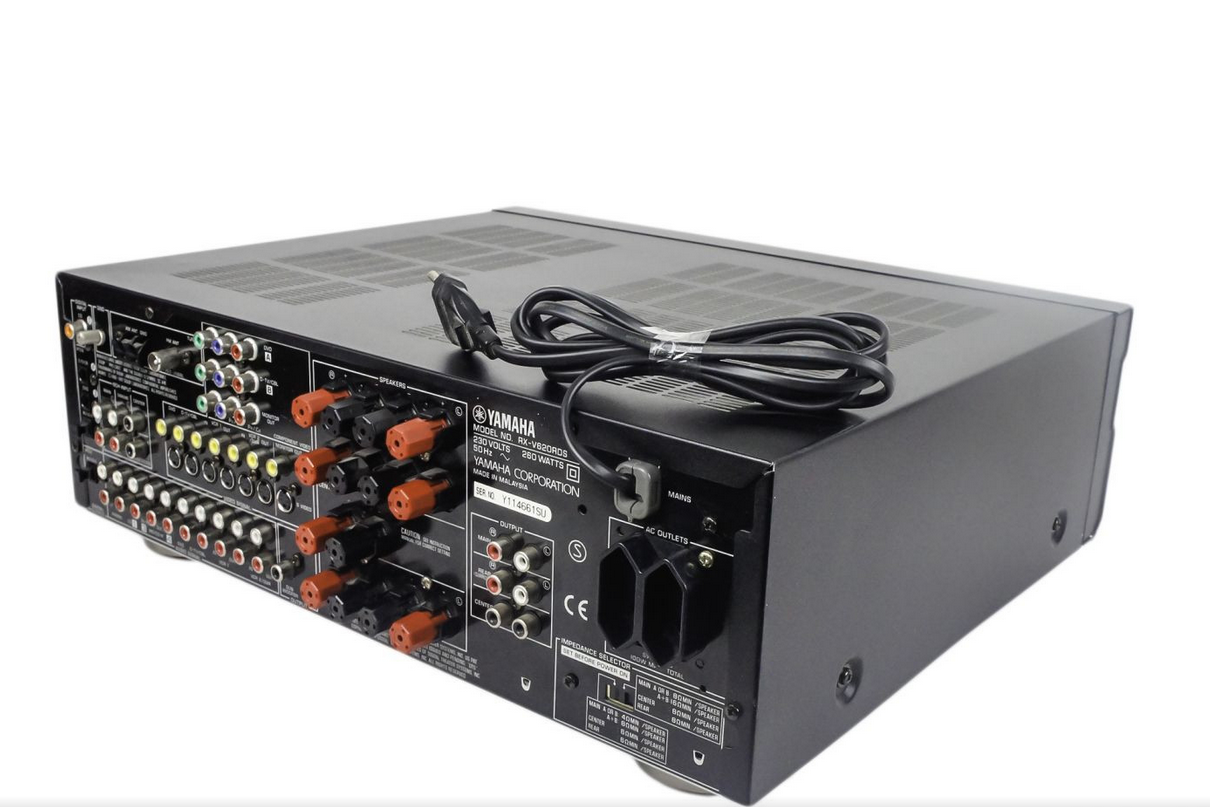

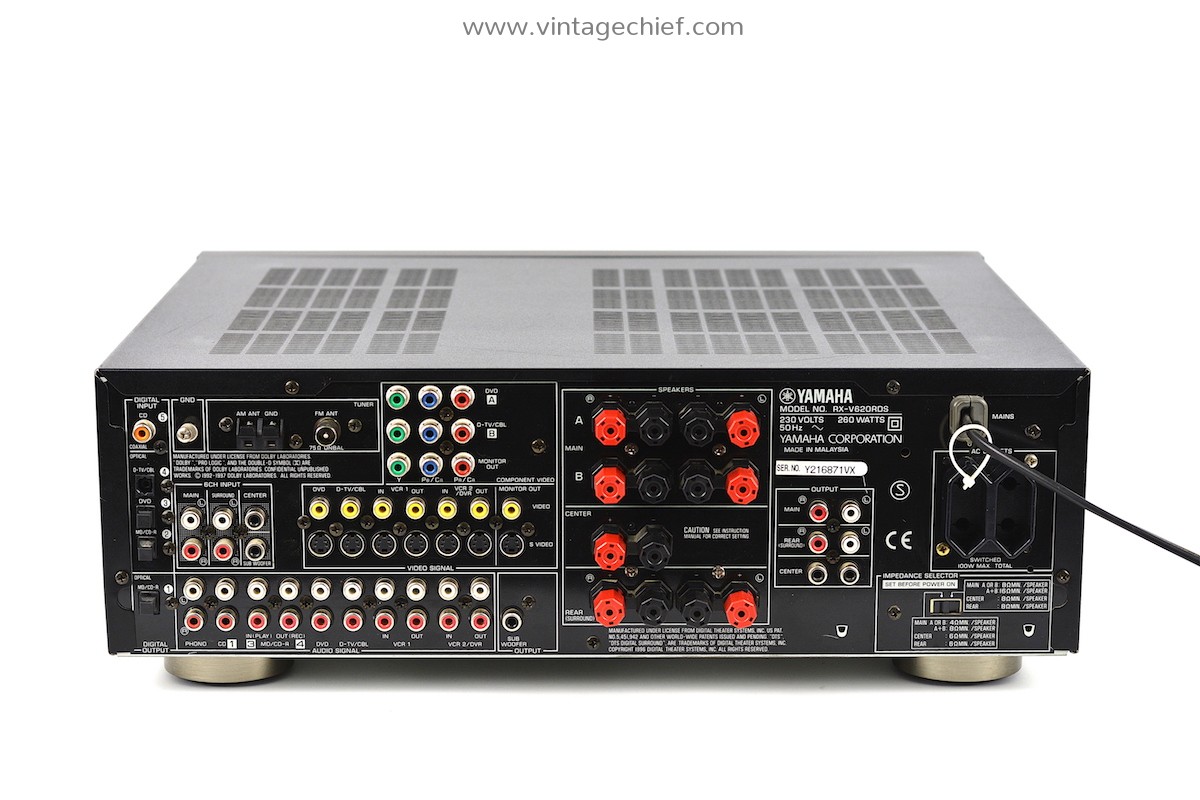

Yamaha RX-V620RDS 5.1 Förstärkare Beg.

fungerar bra
5.1 Channel Receiver

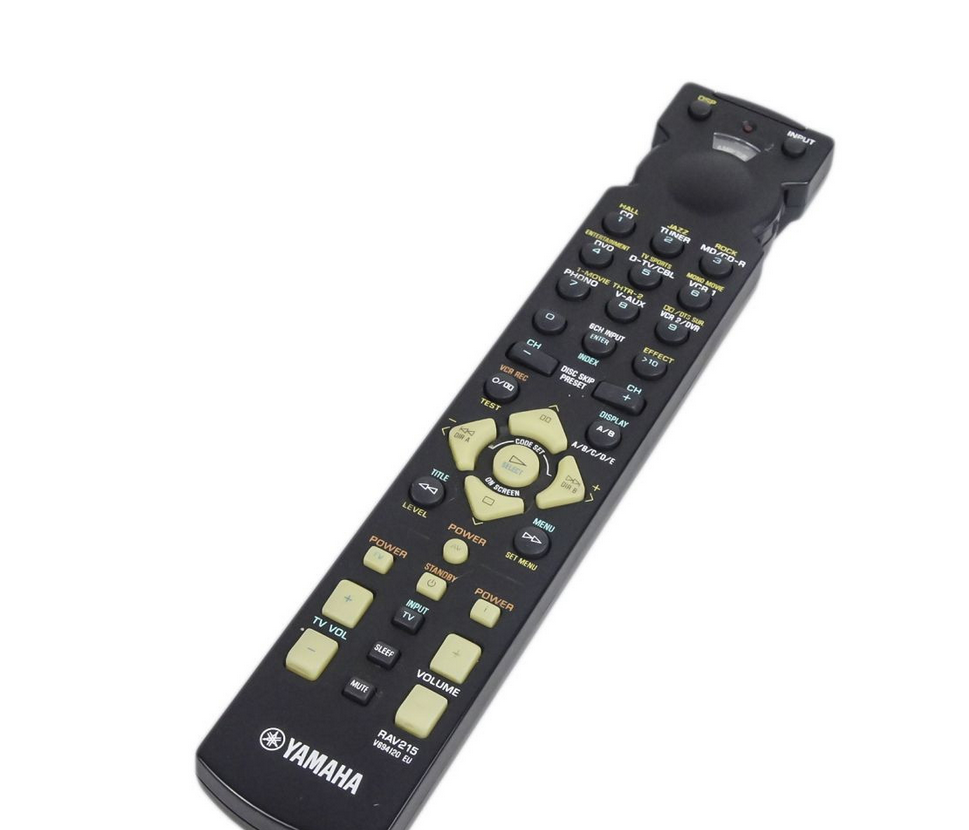

inkl. fjärrkontroll
pecifications

Tuning range: FM, MW

Power output: 100 watts per channel into 8? (stereo)
Surround output: 100W (front), 100W (center), 100W (rear)

Frequency response: 10Hz to 100kHz
Total harmonic distortion: 0.06%

Damping factor: 80
Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 86dB (MM), 100dB (line)
Channel separation: 55dB (MM), 45dB (line)

Output: 150mV (line)
Speaker load impedance: 4? (minimum)

Digital inputs: coaxial, optical
Video Connections: component, composite, SVHS

Dimensions: 435 x 151 x 390mm
Weight: 10.5kg

Finish: black
Accessories: remote control


längd 43 cm
bred 35,5 cm
höjd 14,5 cm
vikt ca 12 kg

Yamaha RX-V620RDS FULL TECHNICAL SPECIFICATIONS

Minimum RMS Output Power per Channel MAIN, 20Hz-20kHz, 0.06% THD, 8 ohms - 100W + 100WCENTER, 20Hz-20kHz, 0.06% THD, 8 ohms - 100WREAR, 20Hz-20kHz, 0.06% THD, 8 ohms - 100W + 100W
Dynamic Power per Channel MAIN, 8/6/4/2 ohms - 130/150/190/240W
Dynamic Headroom 8 ohms - 1.3dB
Damping Factor (8 ohms, 20 Hz-20 kHz) MAIN L/R, 80 or more
Input Sensitivity/ Impedance PHONO MM - 2.5mV/47k ohmsCD, etc - 150mV/47k ohms
Maximum Input Signal Level PHONO MM, 1kHz, 0.05% THD, (Effect on) - 100mVCD, etc (Effect on) - 2.2V
Output Level/ Impedance REC OUT - 150mV/900 ohmsSUBWOOFER(EFFECT OFF, MAIN SP:SMALL)MONO - 4.0V/1.2k ohms
Headphone Jack Rated Output/Impedance CD, etc, - 400mV/560 ohms
Frequency Response (10Hz-100kHz) CD, etc, MAIN L/R - +0/-3.0dB
RIAA Equalization Deviation (20Hz-20kHz) PHONO MM - 0 +/- 0.5dB
BASS Boost/Cut - +/-10dB (50Hz)
TREBLE Boost/Cut - +/-10dB (20kHz)
Bass Extension +6dB (60Hz)
Filter Characteristics SUBWOOFER OUT: LPF - fc=90Hz, 18dB/octMAIN, CENTER, REAR SP SMALL: HPF - fc=90Hz, 12dB/oct
Total Harmonic Distortion (20Hz-20kHz) PHONO MM to REC OUT (1V) - 0.02%CD, etc, to MAIN SP OUT L/R (45 Watts, 8 ohms) - 0.04%
Signal-to-Noise Ratio (IHF-A-Network) CD, etc, Input Shorted (Effect off) - 100dB
Residual Noise (IHF-A-Network) MAIN, SP OUT - 150uV
Channel Separation (Vol.-30dB, Effect off) CD, etc, Input 5.1k ohms Shorted, 1kHz - 60dB
Muting - infinity
Video Signal Type NTSC
Composite Video Signal Level 1Vp-p/75 ohms
S Video Signal Level Y - 1Vp-p/75 ohmsC - 0.286Vp-p/75 ohms
Component Signal Level Y - 1Vp-p/75 ohmsCb/Cr - 0.7V/75 ohms
Video Maximum Input Level 1.5Vp-p
Video Signal-to-Noise Ratio 50dB
Monitor Output Frequency Response Composite Video Signal - 5Hz-10MHz, -3dBS-Video Signal - 5Hz-10MHz, -3dBComponent Signal - DC-30MHz, -3dB
Tuning Range 87.5 to 107.9MHz
50dB Quieting Sensitivity (IHF, 75ohms) Mono (1kHz, 100% Mod) - 1.6uV (15.3dBf)Stereo (1kHz, 100% Mod) - 23uV (38.5dBf)
Selectivity (400kHz) 75dB
